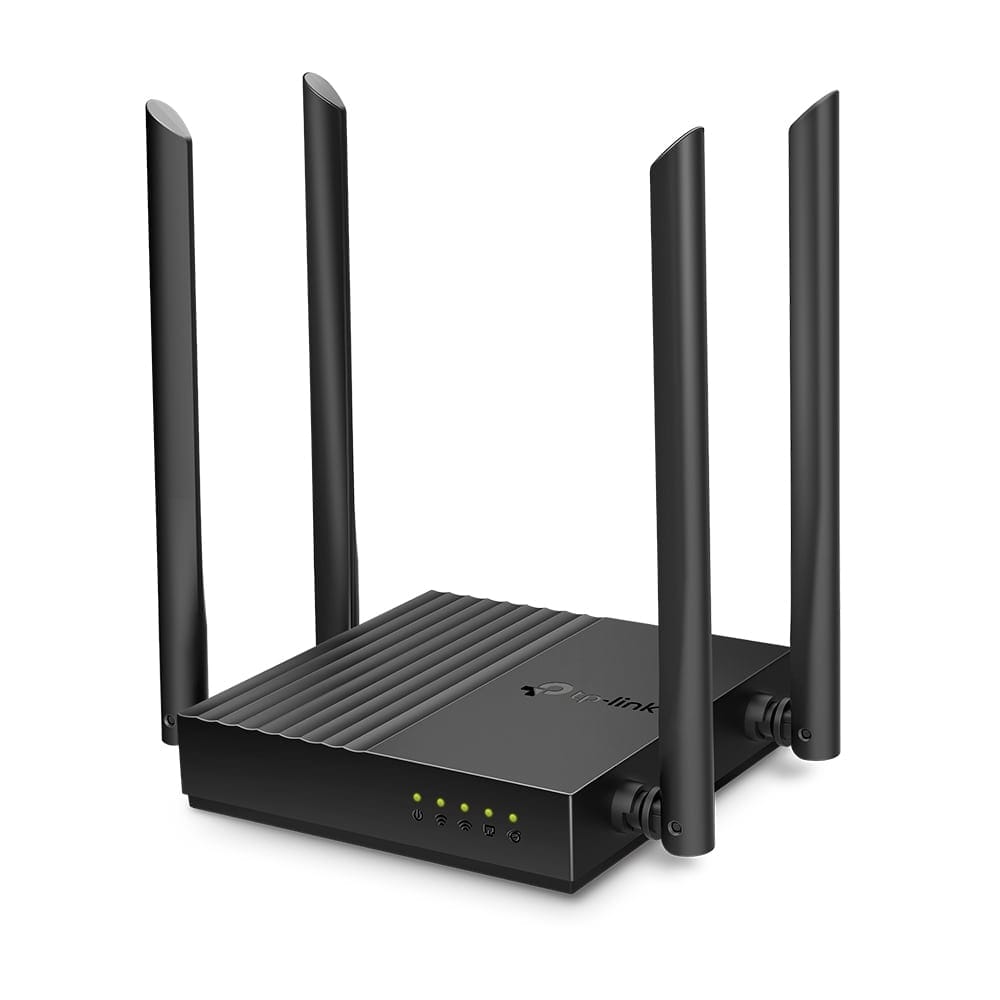

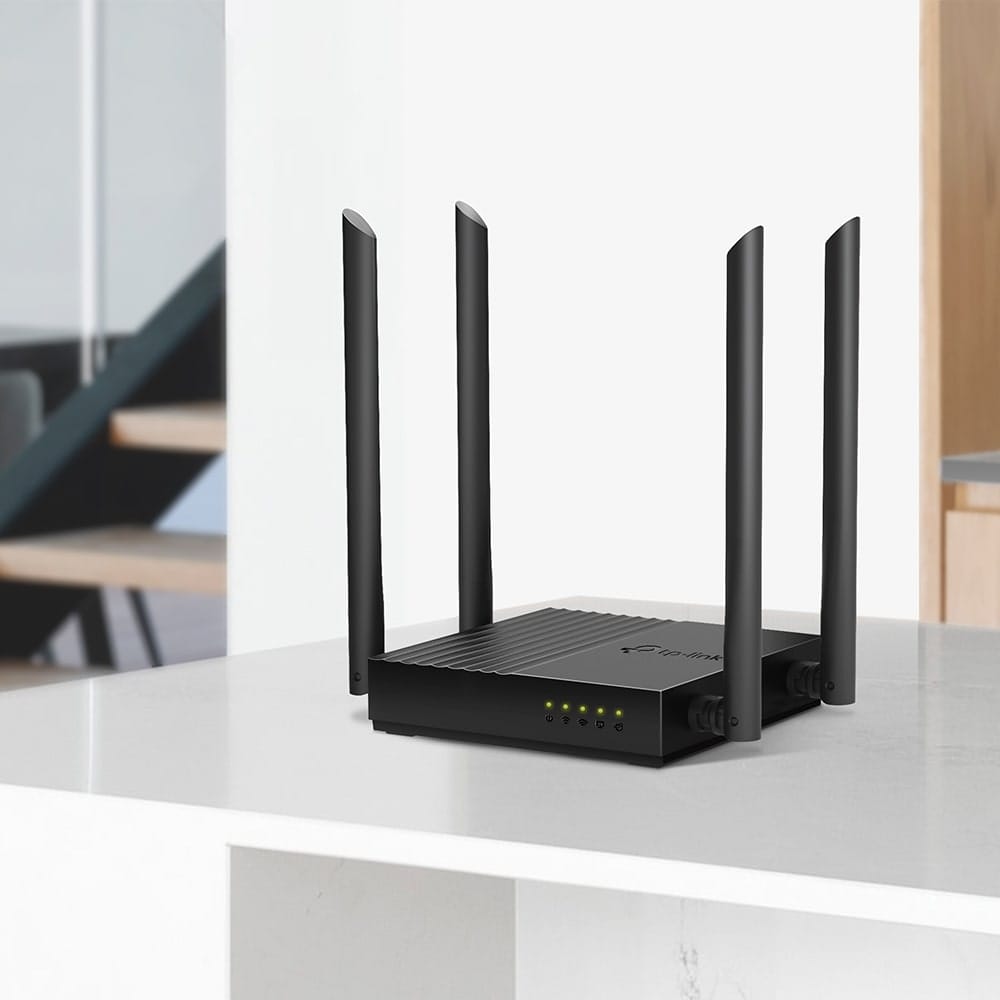

TP-Link Archer C64 - AC1200 Wireless MU-MIMO WiFi Router

SKU: Archer C64

Cateogries:

Network , Access Point

802.11ac Wave2 WiFi – 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band Boosted WiFi Coverage – 4 antennas provide stable wireless connections and optimal coverage MU-MIMO – Easy network management at your fingertips with TP-Link TetherMU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once Beamforming – Beamforming technology delivers a highly efficient wireless connection AP Mode – Supports Access Point mode to create a new WiFi access point Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage Easy Setup – Easy network management at your fingertips with TP-Link Tether

Price:

Product Details

WIRELESS

Standards and Protocols:

Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

Wi-Fi Speeds:

AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n)

Wi-Fi Range:

3 Bedroom Houses

4× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand Wi-Fi range

Wi-Fi Capacity:

Medium

Dual-Band
Allocate devices to different bands for optimal performance

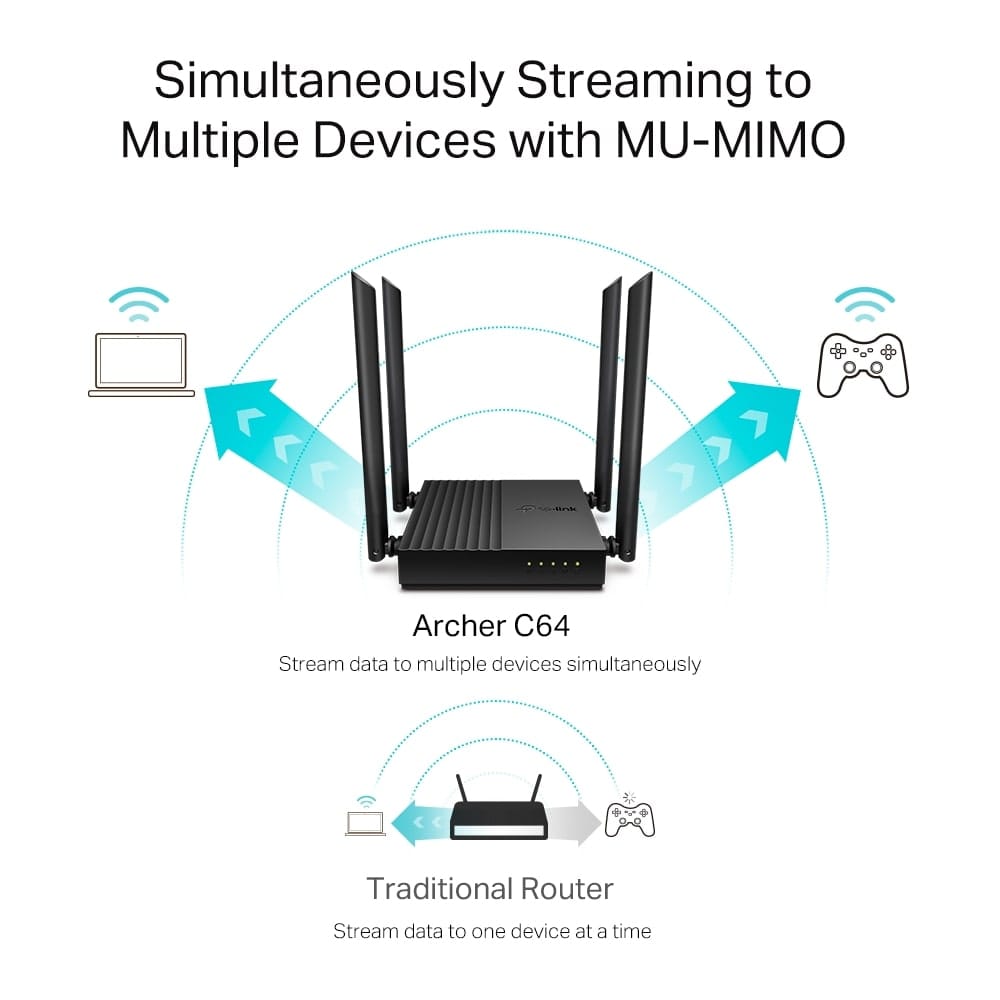

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

Working Modes: Router Mode | Access Point Mode

SECURITY

Network Security: SPI Firewall | Access Control | IP & MAC Binding | Application Layer Gateway

Guest Network: 1× 5 GHz Guest Network | 1× 2.4 GHz Guest Network

Wi-Fi Encryption: WPA | WPA2 | WAP3 | WPA/WPA2-Enterprise (802.1x)

HARDWARE

Processor: 1.2 GHz CPU

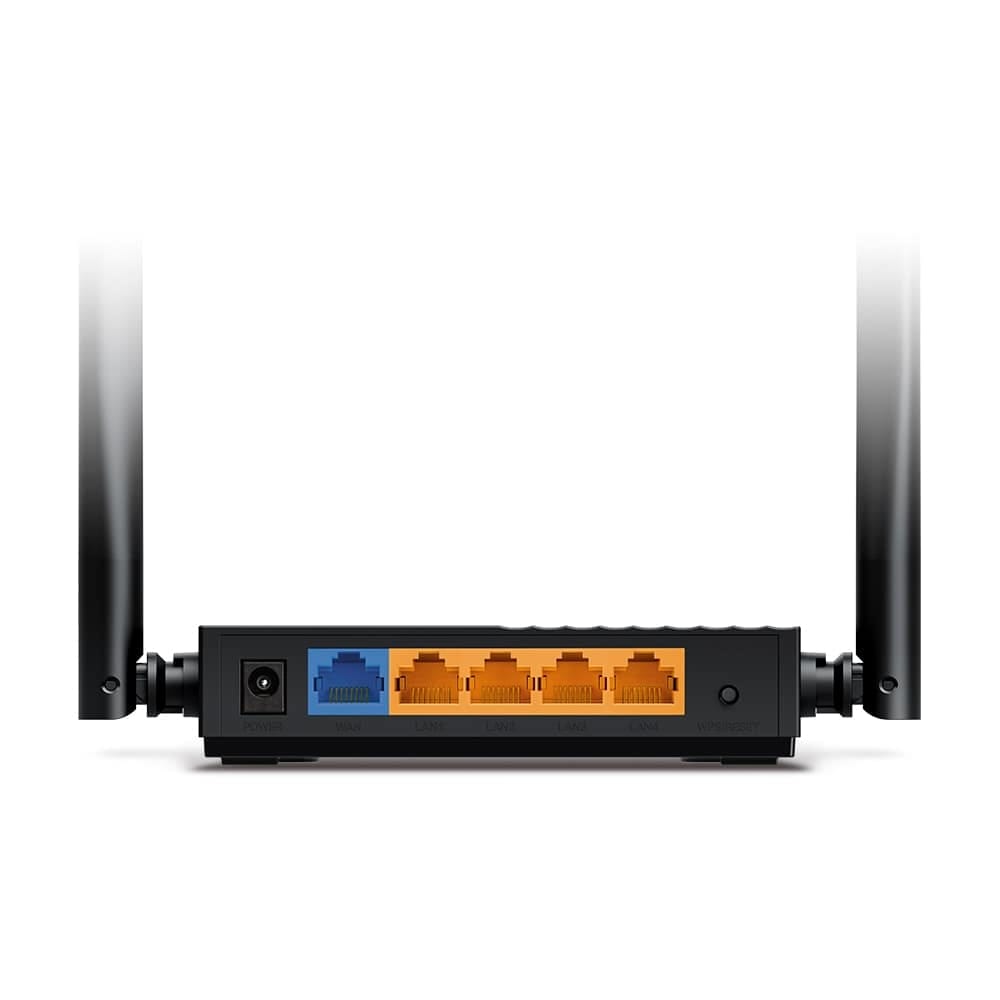

Ethernet Ports: 1× WAN Port | 4× Mbps LAN Ports

Buttons: WPS/Wi-Fi Button | Power On/Off Button | Reset Button

Power: 12 V ⎓ 1 A

SOFTWARE

Protocols: IPv4 | IPv6

EasyMesh: Mesh networking creates smooth, fast, stable roaming. Archer C64 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.

Parental Controls: URL Filtering | Time Controls

WAN Types: Dynamic IP | Static IP | PPPoE (Dual Access) | PPTP (Dual Access) | L2TP (Dual Access)

Quality of Service: QoS by Device

Cloud Service: OTA Firmware Upgrade | TP-Link ID | DDNS

NAT Forwarding: Port Forwarding | Port Triggering | DMZ | UPnP

IPTV: IGMP Proxy | IGMP Snooping | Bridge | Tag VLAN

DHCP: Address Reservation | DHCP Client List | Server

DDNS: NO-IP | DynDNS

Management Features: Tether App | Webpage

OTHER

System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or another JavaScript-enabled browser | Cable or DSL Modem (if needed) | Subscription with an internet service provider (for internet access)

Certifications: CE | RoHS

Environment:

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Warranty: 2-years on the device

TEST DATA

Wi-Fi Transmission Power:

CE:
<20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5 GHz)

Wi-Fi Reception Sensitivity:

5 GHz:
11a 6Mbps:-95dBm
11a 54Mbps:-77dBm
11ac VHT20 MCS8:-71dBm
11ac VHT40 MCS9:-67dBm
11ac VHT80 MCS9:-63dBm

2.4 GHz:
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT20 MCS7:-77dBm
11n HT40 MCS7:-74dBm
11ac VHT20 MCS8:-73dBm
11ac VHT40 MCS9:-68dBm

PHYSICAL

Dimensions (W×D×H): 4.7 × 4.7 × 1.1 in (120 × 120 × 27.9 mm)

Package Content: Wi-Fi Router Archer C64 | Power Adapter | RJ45 Ethernet Cable | Quick Installation Guide
