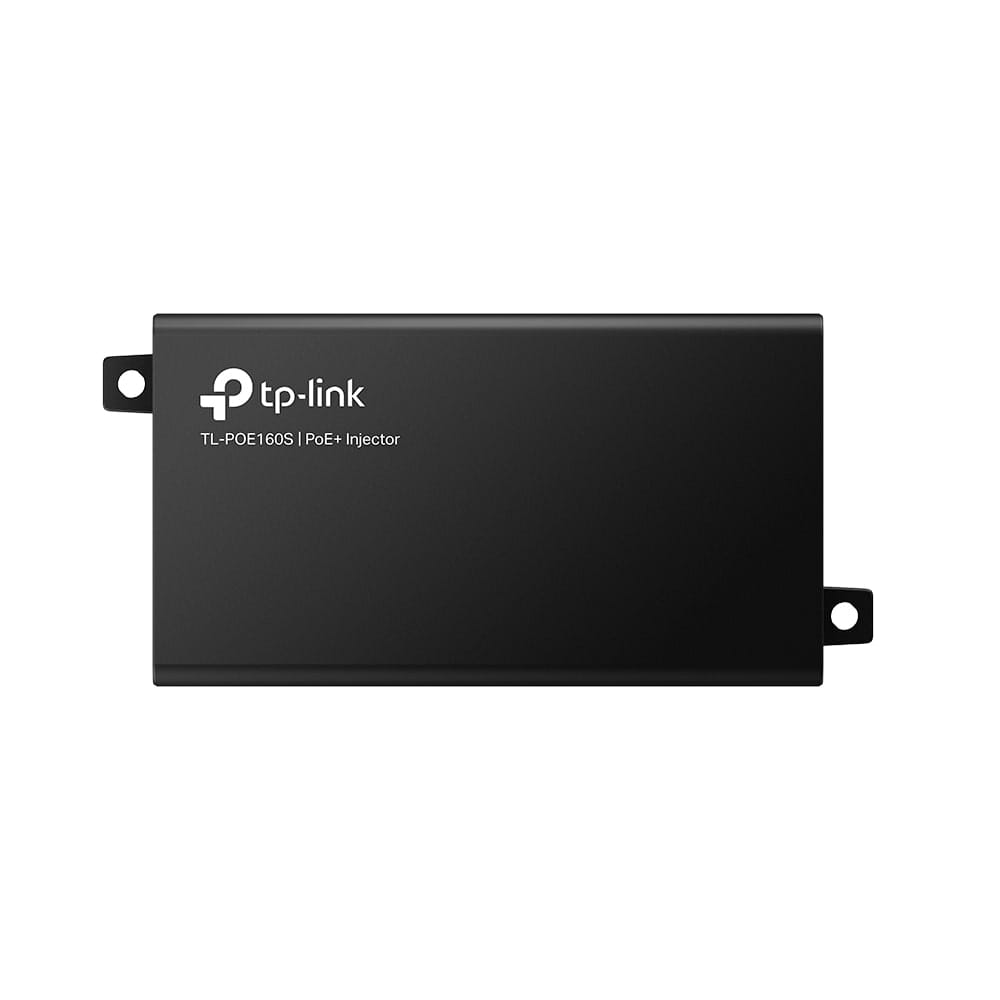

TP-Link TL-POE160S - PoE+ Injector

HARDWARE FEATURES

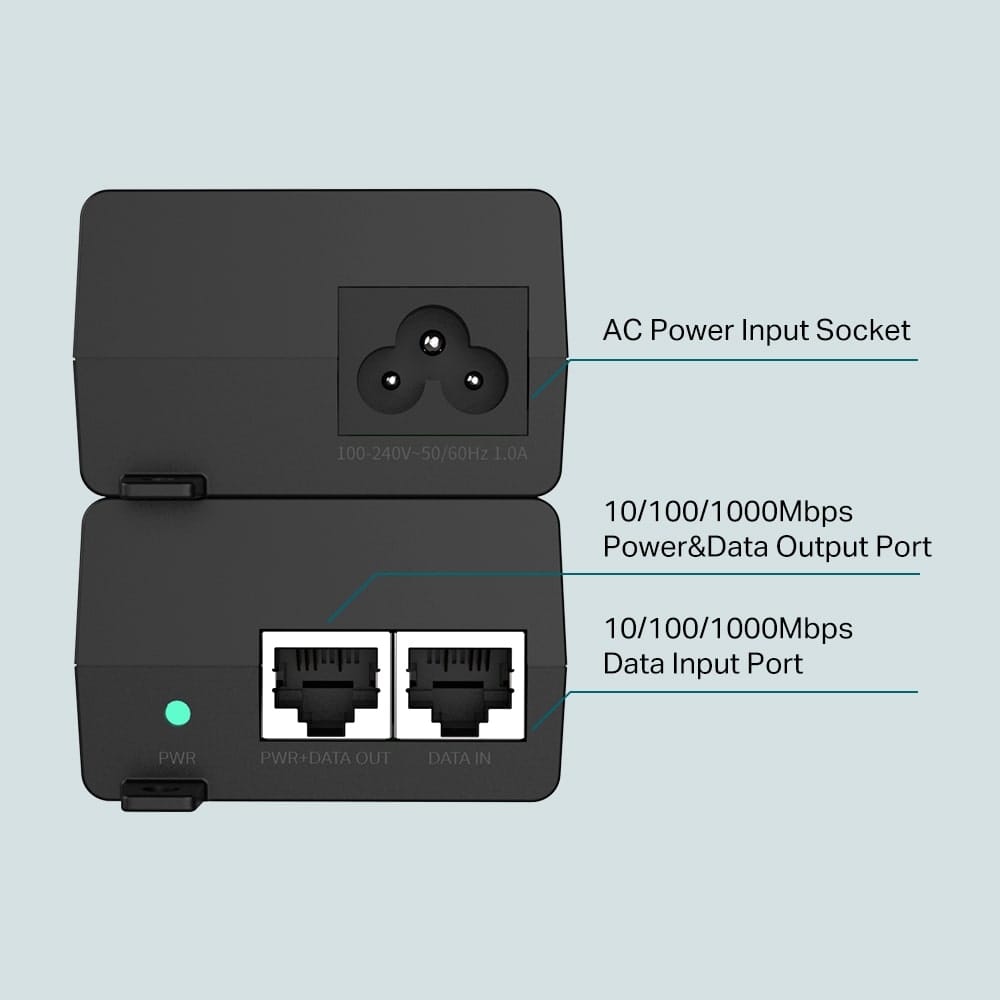

Interface:

• 1 10/100/1000Mbps RJ45 data-in port

• 1 10/100/1000Mbps RJ45 power+data-out port

• 1 AC socket

Network Media:

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100 m)

Max. Power Consumption:

• Input: 100-240 V, 50/60 Hz

• Output: Auto-determine the necessary power requirements (max. 30 W)

Basic Function:

• Auto-Sensing Algorithm enables providing power with 802.3af/at PD

• Auto-determine the necessary power requirements

• Wall-mounting and desktop installation supported

• Plug-and-Play

LED:

• ON: Supplying power normally

• OFF: No power supply

Dimensions (W x D x H): 4.9 x 2.3 x 1.4 in (125 x 59.4 x 36.8 mm)

Network

Standards and Protocols:

• IEEE802.3i | IEEE802.3u | IEEE802.3ab | IEEE802.3af | IEEE802.3at

OTHERS

Certification: FCC | CE | RoHS

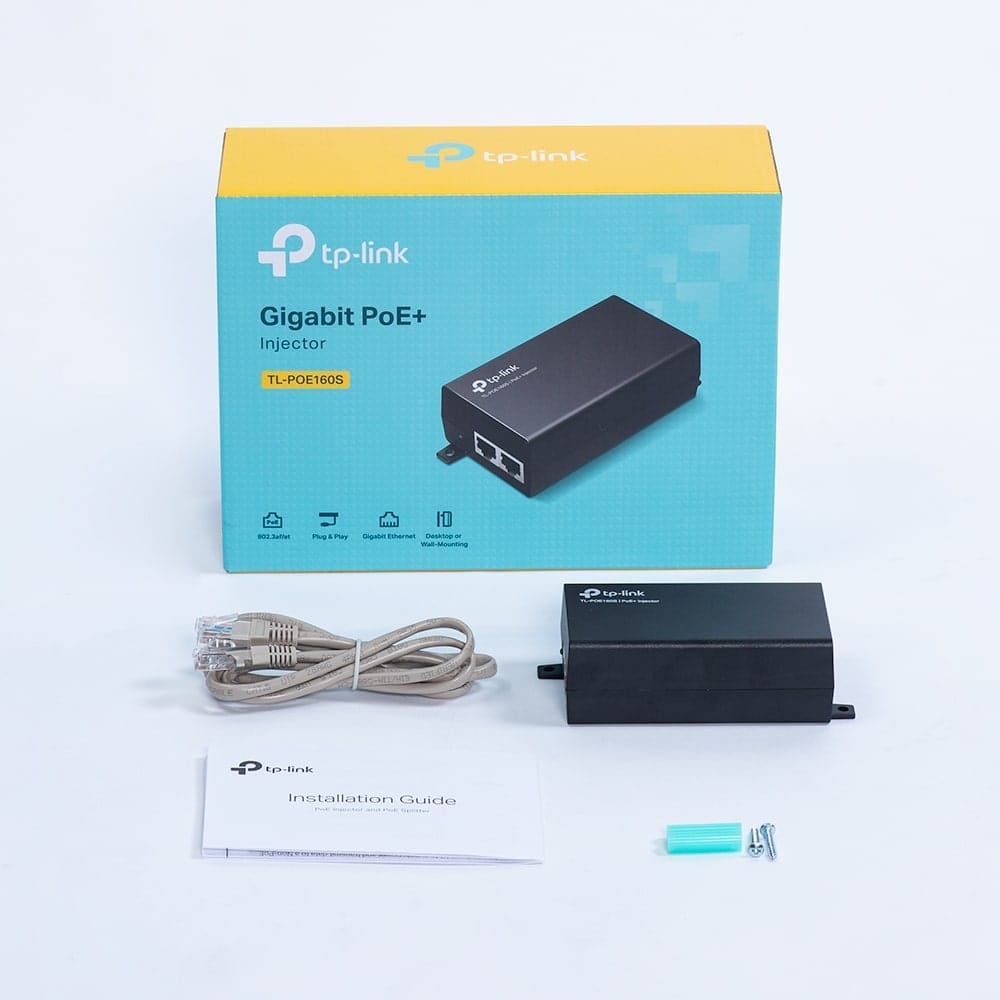

Package Content: TP-Link TL-POE160S - PoE+ Injector | Power Cord | Installation Guide | RJ45 Cable | Wall Mounting Kits

Environment:

Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing

Warranty: 2-Years on the Device.
