TP-Link Archer C24 - AC750 Dual-Band Wi-Fi Router

WIRELESS

Standards and Protocols:

Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

Wi-Fi Speeds:

AC750

5 GHz: 433 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

Wi-Fi Range:

2 Bedroom Houses

4× Fixed Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Wi-Fi Capacity:

Medium

Dual-Band

Allocate devices to different bands for optimal performance

Working Modes: Router Mode | Access Point Mode | Range Extender Mode

SECURITY

Network Security: SPI Firewall | Access Control | IP & MAC Binding | Application Layer Gateway

Guest Network: 1× 5 GHz Guest Network | 1× 2.4 GHz Guest Network

Wi-Fi Encryption: WEP | WPA | WPA2 | WPA/WPA2-Enterprise (802.1x)

HARDWARE

Processor: Single-Core CPU

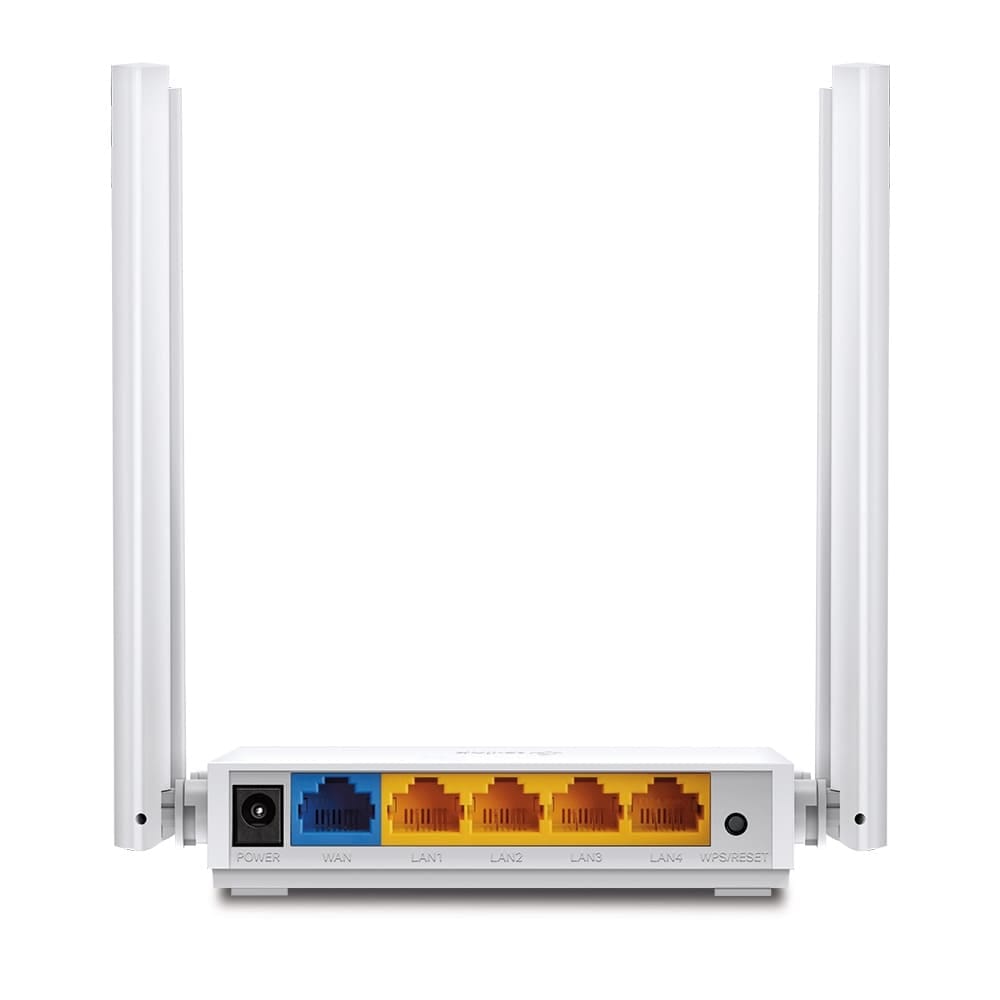

Ethernet Ports: 1× 10/100 Mbps WAN Port | 4× 10/100 Mbps LAN Ports

Buttons: WPS/Reset Button

Power: 9 V ⎓ 0.6 A

SOFTWARE

Protocols: IPv4 | IPv6

Parental Controls: URL Filtering | Time Controls

WAN Types: Dynamic IP | Static IP | PPPoE | PPTP | L2TP

Quality of Service: QoS by Device

NAT Forwarding: Port Forwarding | Port Triggering | DMZ | UPnP

IPTV: IGMP Proxy | IGMP Snooping | Bridge | Tag VLAN

DHCP: Address Reservation | DHCP Client List | Server

DDNS: NO-IP | DynDNS

Management Features: Tether App | Webpage

OTHER

System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or another JavaScript-enabled browser | Cable or DSL Modem (if needed) | Subscription with an internet service provider (for internet access)

Certifications: FCC, CE, RoHS

Environment:

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~60℃ (-40℉ ~140℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Warranty: 2-years on the device

TEST DATA

Wi-Fi Transmission Power:

CE:

<20dBm(2.4GHz)

<23dBm(5GHz)

Wi-Fi Reception Sensitivity:

5GHz:

11a 54M: -76dBm;

11ac VHT20 MCS8: -71dBm;

11ac VHT40 MCS9: -66dBm;

11ac VHT80 MCS9: -62dBm

2.4GHz:

11g 54M: -76dBm;

11n HT20 MCS7: -73dBm;

11n HT40 MCS7: -71dBm

PHYSICAL

Dimensions (W×D×H): 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)

Package Content: Wi-Fi Router Archer C24 | Power Adapter | RJ45 Ethernet Cable | Quick Installation Guide
