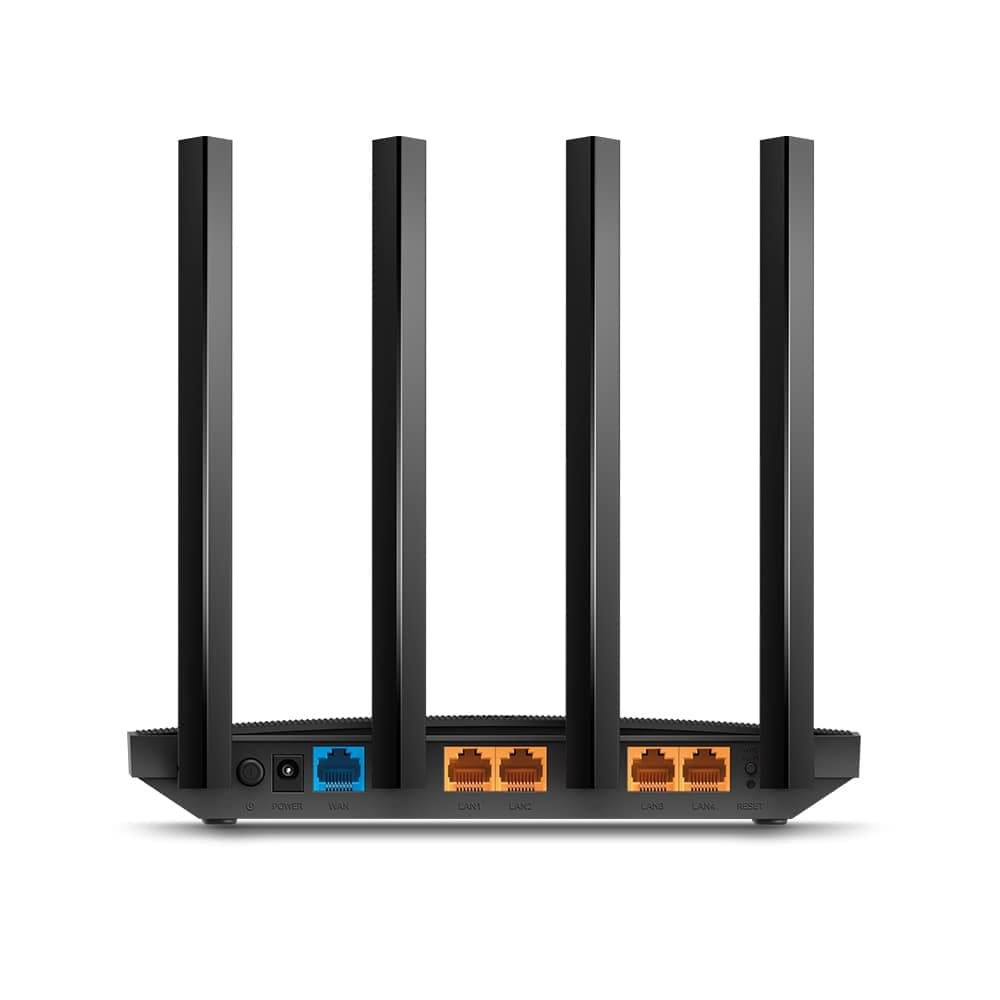

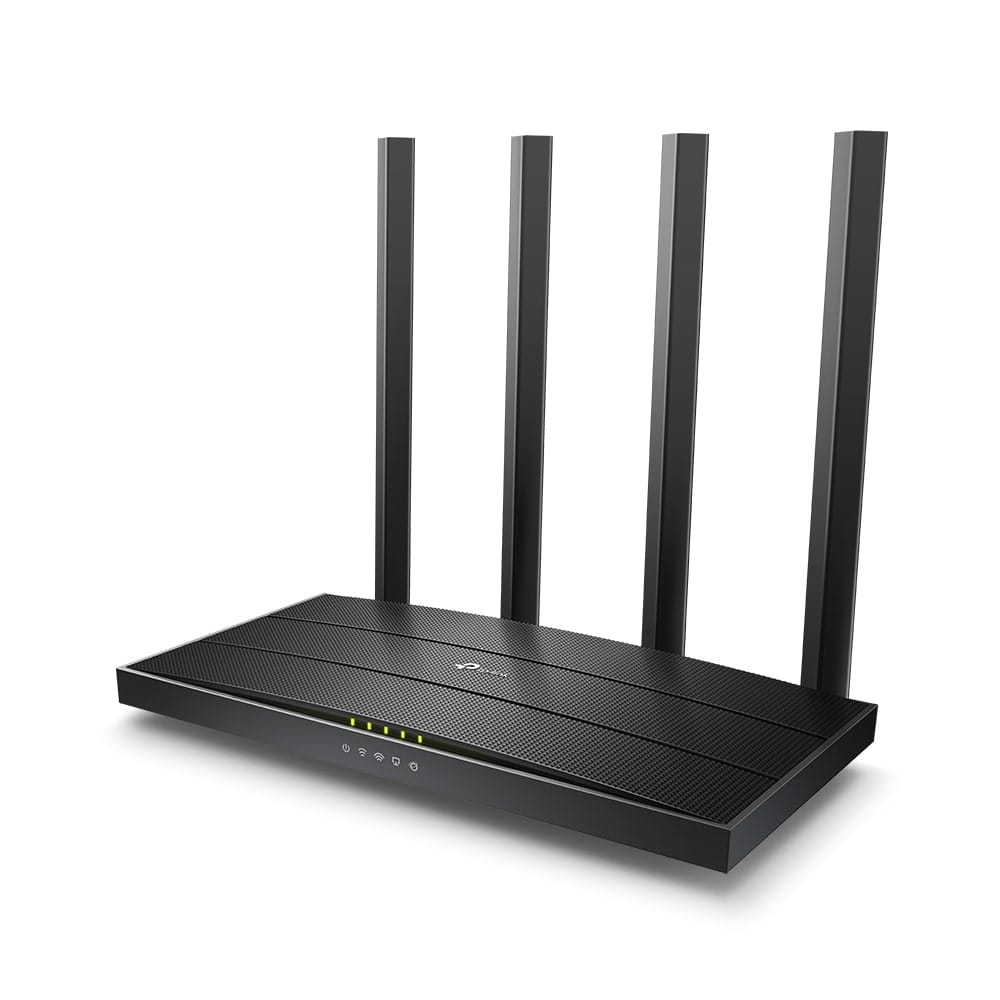

TP-Link Archer C80 - AC1900 Wireless MU-MIMO Wi-Fi Router

Click on image to zoom

TP-Link

TP-Link Archer C80 - AC1900 Wireless MU-MIMO Wi-Fi Router

SKU: Archer C80

Cateogries:

Network , Access Point

802.11ac Wave2 Wi-Fi – 1300 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band. 3×3 MIMO Technology – Transmitting and receiving data on three streams to pair flawlessly with your 3×3 clients. Boosted Wi-Fi Coverage – Beamforming technology delivers a highly efficient wireless connection. MU-MIMO – To help your devices achieve optimal performance by making communication more efficient. Personalized Management – Advanced features like Parental Controls, Guest Network, and Access Control provide individualized tools for network management. Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage. 2-Years Warranty on the Device.

Price:

Product Details

WIRELESS

Standards and Protocols:

Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

Wi-Fi Speeds:

AC1900
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 600 Mbps (802.11n)

Wi-Fi Range:

3 Bedroom Houses

4× Fixed Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand Wi-Fi range

Wi-Fi Capacity:

Medium

Dual-Band
Allocate devices to different bands for optimal performance

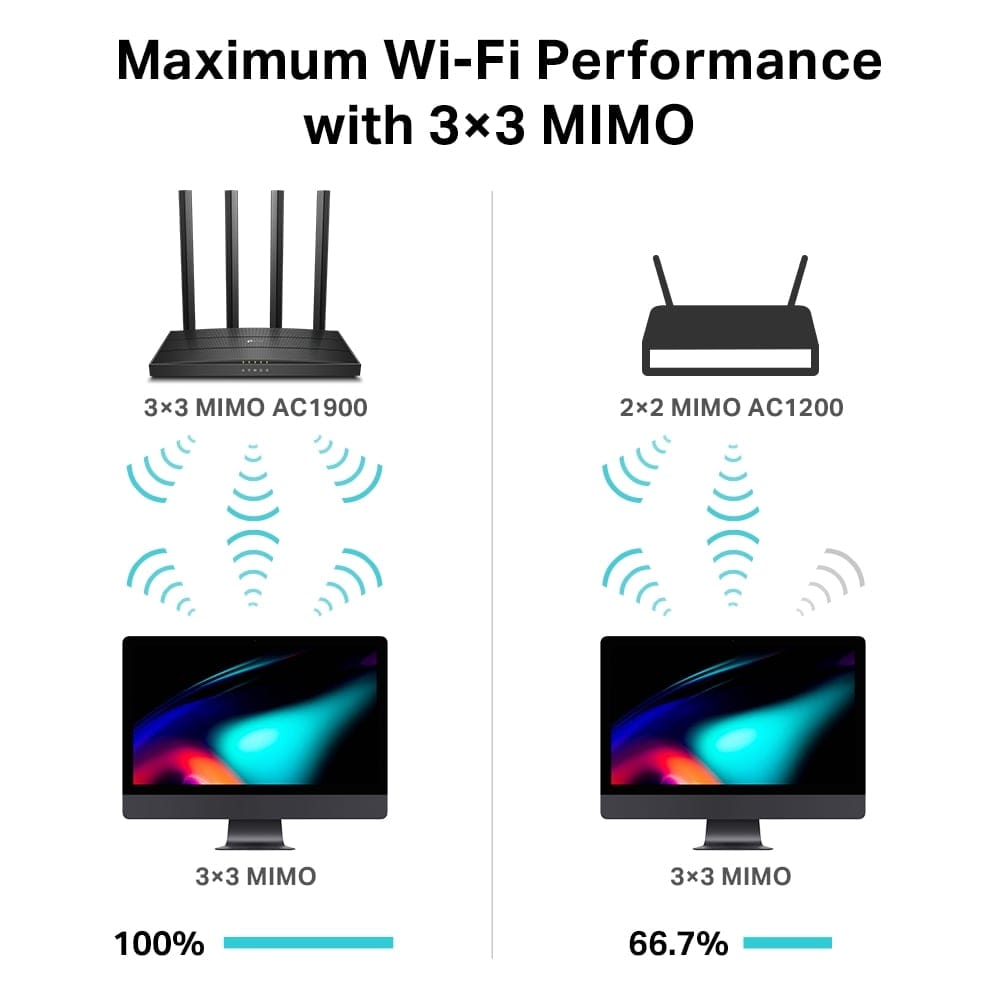

3×3 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

Working Modes: Router Mode | Access Point Mode

SECURITY

Network Security: SPI Firewall | Access Control | IP & MAC Binding | Application Layer Gateway

Guest Network: 1× 5 GHz Guest Network | 1× 2.4 GHz Guest Network

Wi-Fi Encryption: WPA | WPA2 | WAP3 | WPA/WPA2-Enterprise (802.1x)

HARDWARE

Processor: 1.2 GHz CPU

Ethernet Ports: 1× WAN Port | 4× Mbps LAN Ports

Buttons: WPS/Wi-Fi Button | Power On/Off Button | Reset Button

Power:

US Version
12 V ⎓ 1.5 A
EU Version
12 V ⎓ 1 A

SOFTWARE

Protocols: IPv4 | IPv6

OneMesh™: OneMesh™ Supported

Without replacing your existing devices or buying a whole new Wi-Fi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Parental Controls: URL Filtering | Time Controls

WAN Types: Dynamic IP | Static IP | PPPoE | PPTP | L2TP

Quality of Service: QoS by Device

Cloud Service: OTA Firmware Upgrade | TP-Link ID | DDNS

NAT Forwarding: Port Forwarding | Port Triggering | DMZ | UPnP

IPTV: IGMP Proxy | IGMP Snooping | Bridge | Tag VLAN

DHCP: Address Reservation | DHCP Client List | Server

DDNS: NO-IP | DynDNS

Management Features: Tether App | Webpage

OTHER

System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or another JavaScript-enabled browser | Cable or DSL Modem (if needed) | Subscription with an internet service provider (for internet access)

Certifications: FCC | CE | RoHS

Environment:

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Warranty: 2-years on the device

TEST DATA

Wi-Fi Transmission Power:

CE:

<20dBm(2.4GHz)

<23dBm(5.15GHz~5.25GHz)

FCC:

<30dBm(2.4GHz & 5GHz)

Wi-Fi Reception Sensitivity:

5GHz:
11a 6Mbps: -98dBm, 11a 54Mbps: -78dBm
11ac VHT20_MCS0: -98dBm, 11ac VHT20_MCS8: -72dBm
11ac VHT40_MCS0: -92dBm, 11ac VHT40_MCS9: -68dBm
11ac VHT80_MCS0: -89dBm, 11ac VHT80_MCS9: -64dBm

2.4GHz:
11g 6Mbps: -97dBm, 11a 54Mbps: -77dBm
11n VHT20_MCS0: -97dBm, 11n VHT20_MCS8: -72dBm
11n VHT40_MCS0: -92dBm, 11n VHT40_MCS9: -67dBm

PHYSICAL

Dimensions (W×D×H): 8.5 × 4.6 × 1.26 in (215 × 117 × 32 mm)

Package Content: Wi-Fi Router Archer C80 | Power Adapter | RJ45 Ethernet Cable | Quick Installation Guide
